機號	傳動方式	轉速 rpm	序號	全壓 Pa	流量 m³/h	內效率 %	內功率 kw	所需功率 kw	電動機
									型號	功率 kw
8	D	1450	1 2 3 4 5 6 7 8	2104 2095 2072 2018 1924 1794 1611 1400	16156 18244 20442 22530 24618 26706 28904 30993	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	11.80 12.67 13.63 14.42 15.06 15.45 15.53 15.11	13.85 14.83 15.99 16.92 17.67 18.13 18.22 17.73	Y180M-4	18.5
9	D	1450	1 2 3 4 5 6 7 8	2668 2656 2628 2559 2440 2275 2042 1775	23003 25976 29106 32079 35052 38026 41155 44128	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	21.27 22.83 24.55 25.98 27.13 27.84 27.99 27.23	24.96 26.78 28.81 30.48 31.84 32.67 32.84 31.95	Y200L-4	30
									Y225S-4	37
9	D	960	1 2 3 4 5 6 7 8	1163 1158 1146 1116 1064 992 891 775	15229 17198 19270 21238 23207 25175 27247 29216	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	6.17 6.62 7.13 7.54 7.87 8.08 8.12 7.90	7.24 7.77 8.36 8.85 9.24 9.48 9.53 9.27	Y160L-6	11
10	D	1450	1 2 3 4 5 6 7 8	3301 3287 3251 3166 3018 2813 2525 3194	31554 35633 39926 44004 48083 52161 56455 60533	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	36.02 38.66 41.58 44.0 45.95 47.15 47.39 46.12	42.27 45.36 48.79 51.64 53.92 55.32 55.61 54.11	Y250M-4	55
10	D	960	1 2 3 4 5 6 7 8	1437 1431 1416 1379 1315 1226 1101 958	20891 23591 29134 29134 31834 34534 37377 40077	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	10.45 11.22 12.07 12.76 13.34 13.68 13.75 13.38	12.26 13.16 14.16 14.98 15.65 16.06 16.14 15.70	Y180L-6	15
									Y200L1-6	18.5
10	D	730	1 2 3 4 5 6 7 8	829 826 817 796 759 708 636 553	15886 17939 20100 22154 24207 26260 28422 30475	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	4.60 4.93 5.31 5.61 5.86 6.02 6.05 5.88	5.63 5.79 6.23 6.59 6.88 7.06 7.10 6.91	Y160L-8	7.5
11	D	1450	1 2 3 4 5 6 7 8	4003 3986 3943 3840 3660 3411 3060 2659	41999 47427 53142 58570 63998 69427 75141 80570	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	58.01 62.26 66.97 70.88 74.00 75.93 79.33 74.27	68.07 73.05 78.58 83.16 86.84 89.10 89.57 87.15	Y280S-4	75
									Y280M-4	90
11	D	960	1 2 3 4 5 6 7 8	1741 1734 1715 1671 1593 1485 1334 1160	27806 31400 35183 38777 42371 45965 49784 53343	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	16.83 18.07 19.43 20.57 21.48 22.04 22.15 21.55	19.75 21.20 22.80 24.13 25.20 25.86 25.99 25.29	Y200L2-6	22
									Y200M-6	30
11	D	730	1 2 3 4 5 6 7 8	1004 1000 989 964 919 857 770 669	21144 23877 26754 29487 32220 34953 37829 40562	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	7.40 7.94 8.55 9.04 9.44 9.69 9.74 9.48	8.69 9.32 10.03 10.64 11.08 11.37 11.43 11.13	Y180L-8	11
12	D	1450	1 2 3 4 5 6 7 8	4777 4756 4705 4582 4366 4069 3650 3171	54526 61574 68992 76040 83088 90135 97554 104600	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	89.63 96.19 103.46 109.49 114.33 117.31 117.92 114.75	105.17 112.87 121.40 128.47 134.15 137.65 138.36 134.65	Y315M1-4	132
									Y315M2-8	160
12	D	960	1 2 3 4 5 6 7 8	2075 2066 2044 1990 1898 1769 1588 1381	36100 40766 45677 50344 55010 59676 64587 69253	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	26.01 27.91 30.03 31.77 33.18 34.0 34.22 33.30	30.52 32.76 35.23 37.29 38.94 39.95 40.16 39.08	Y250M-6	37
									Y280S-6	45
12	D	730	1 2 3 4 5 6 7 8	1196 1191 1178 1148 1094 1020 916 797	27451 30999 34734 38282 41830 45378 49113 52661	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	11.44 12.27 13.20 13.97 14.59 14.97 15.05 14.64	13.42 14.40 15.49 16.39 17.12 17.57 17.66 17.18	Y200L-8	15
									Y225S-8	18.5
14	D	1450	1 2 3 4 5 6 7 8	6541 6513 6442 6272 5975 5566 4990 4333	86586 97777 109550 120740 131940 143430 154910 166100	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	193.7 1207.90 223.63 236.66 247.13 253.56 254.89 248.02	227.30 243.96 262.41 277.7 289.99 297.53 299.10 291.04	Y355L1-4	280
									Y355L2-4	315
14	D	960	1 2 3 4 5 6 7 8	2831 2919 2789 2716 2589 2414 2166 1883	57326 64735 72534 79944 87353 94763 102560 109970	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	56.22 60.33 64.90 68.68 71.72 73.59 73.97 71.98	65.97 70.80 76.16 80.56 84.16 86.35 86.80 84.46	Y315S-6	75
									Y315M1-6	90
14	D	730	1 2 3 4 5 6 7 8	1630 1623 1606 1564 1491 1391 1291 1086	43591 49225 55156 60797 66425 72059 77990 83624	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	24.72 26.53 28.54 30.20 31.54 32.36 32.53 31.65	29.01 31.13 33.49 35.44 37.00 37.97 38.17 37.14	Y280S-8	37
									Y280M-8	45
16	D	960	1 2 3 4 5 6 7 8	3709 3693 3653 3558 3391 3161 2836 2465	85571 96631 108270 119330 130390 141450 153090 164150	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	109.6 117.63 126.53 133.91 139.86 143.46 144.21 140.33	128.60 138.03 148.47 157.12 164.08 168.33 169.23 164.66	Y355M2-6	45
, 16	D	730	1 2 3 4 5 6 7 8	2133 2124 2101 2047 1951 1819 1633 1420	65069 73480 82333 90743 99153 107560 116410 124820	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	48.19 51.72 55.61 58.88 61.48 63.08 63.41 61.70	56.55 60.69 65.29 69.09 72.15 74.02 74.41 72.41	Y315M1-4	75
16	D	580	1 2 3 4 5 6 7 8	1343 1337 1323 1289 1228 1146 1029 895	51699 58381 65415 72097 78779 85462 92495 99178	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	24.17 25.94 27.97 29.53 30.84 31.64 31.80 30.95	28.36 30.44 31.75 34.65 63.18 37.13 37 32 36.31	Y315S-10	45
18	D	960	1 2 3 4 5 6 7 8	4710 4690 4639 4518 4305 4012 3599 3126	121830 134580 154160 169910 185650 201400 217980 233730	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	179.51 211.97 228.02 241.3 251.97 258.53 259.88 252.88	231.77 248.73 267.57 283.15 295.67 303.37 304.95 296.74	Y355-6	280
									*JSQ148	310
18	D	730	1 2 3 4 5 6 7 8	2705 2693 2664 2595 2474 2306 2070 1800	92648 104620 117220 129200 144470 153150 165750 17730	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	86.82 93.21 100.26 106.1 110.79 113.67 114.27 111.19	101.91 109.37 117.64 124.49 130 133.37 134.09 130.46	Y355M1-8	132
18	D	580	1 2 3 4 5 6 7 8	1702 1694 1676 1633 1557 1452 1303 1133	73610 83125 93140 102650 112160 121680 131690 141210	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	43.56 46.75 50.29 53.22 55.57 57.01 57.31 55.77	51.11 54.83 89.01 62.45 65.21 66.90 67.25 65.44	Y315M2-10	75
20	D	960	1 2 3 4 5 6 7 8	5837 5812 5749 5598 5334 4969 4453 3870	167130 188730 211470 233070 254670 276270 299010 320610	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	334.49 358.98 386.15 408.65 426.81 437.82 441.12 428.25	392.5 421.24 453.13 379.52 500.73 513.76 516.46 502.52	*JSQ148-6	430
									JSQ1410-6	520
20	D	730	1 2 3 4 5 6 7 8	3347 3333 3297 3211 3060 2853 2560 2225	127080 143510 160800 177230 193660 210080 227370 243800	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	147.07 157.8 169.79 179.68 187.63 192.51 193.52 188.30	172.58 185.21 199.23 210.85 220.16 225.89 227.07 220.96	Y355-8	320
									Y355-8	250
20	D	580	1 2 3 4 5 6 7 8	2014 2095 2072 2018 1924 1794 1611 1400	100970 114020 127760 140810 153860 166910 180650 193700	79.4 83.2 85.7 87 86.8 85.6 82.8 79.4	73.77 79.17 85.16 90.12 94.11 96.55 97.05 94.44	86.56 92.90 99.93 105.75 110.42 113.30 113.89 110.82	Y355M-10	110
									Y355L1-10	132

注意：訂購時請再次確認并注明風機的機號、風量、轉速、壓力、出風口角度以及旋轉方向以及電機型號規(guī)格參數，有特殊要求請?zhí)貏e標注。

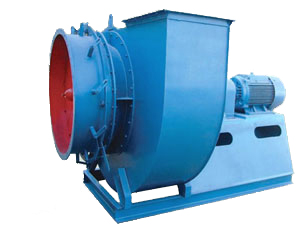

GY4-73型鍋爐通、引風機

設備資料查詢

GY4-73型鍋爐通、引風機
